Method​

Installation and Setup​

git clone -b release https://github.com/netbox-community/netbox-docker.git
cd netbox-docker

The netbox-docker directory contains

  1. files required for the container to spin up
  2. Configuration files

The directory already contains a docker-compose.yml file. Custom docker compose configurations can be entered in docker-compose.override.yml, which will be read after docker-compose.yml file, and overwrite any overlapping configurations.

warning

The default cloned repository is not ready for production. Needs to change environment variables before exposing the service.

# docker-compose.override.yml
version: '3.4'
services:
  netbox:
    image: netbox:latest-plugins
    ports:
      - $NETBOX_PORT:8080
    build:
      context: .
      dockerfile: Dockerfile-Plugins
    env_file: .env
  netbox-worker:
    image: netbox:latest-plugins
    env_file: .env
    build:
      context: .
      dockerfile: Dockerfile-Plugins
  netbox-housekeeping:
    image: netbox:latest-plugins
    env_file: .env
    build:
      context: .
      dockerfile: Dockerfile-Plugins
  postgres:
    env_file: .env
    volumes:
      - ./db:/var/lib/postgresql/data
    environment:
      POSTGRES_DB: $DB_NAME
      POSTGRES_PASSWORD: $DB_PASSWORD
      POSTGRES_USER: $DB_USER
  redis:
    env_file: .env
    volumes:
      - ./redis:/data
  redis-cache:
    environment:
      REDIS_PASSWORD: $REDIS_CACHE_PASSWORD
    env_file: .env
#
volumes:
  netbox-media-files:
    driver: local
    driver_opts:
      o: bind
      type: none
      device: ./media
  netbox-redis-cache-data:
    driver: local
  netbox-reports-files:
    driver: local
    driver_opts:
      o: bind
      type: none
      device: ./reports
  netbox-scripts-files:
    driver: local
    driver_opts:
      o: bind
      type: none
      device: ./scripts
# .env
CORS_ORIGIN_ALLOW_ALL=True

DB_HOST=postgres
DB_NAME=netbox
DB_PASSWORD=<RANDOM_PASSWORD>
DB_USER=netbox

EMAIL_FROM=netbox@bar.com
EMAIL_PASSWORD=
EMAIL_PORT=25
EMAIL_SERVER=localhost
EMAIL_SSL_CERTFILE=
EMAIL_SSL_KEYFILE=
EMAIL_TIMEOUT=5
EMAIL_USERNAME=netbox
# EMAIL_USE_SSL and EMAIL_USE_TLS are mutually exclusive, i.e. they can't both be `true`!
EMAIL_USE_SSL=false
EMAIL_USE_TLS=false

GRAPHQL_ENABLED=true
HOUSEKEEPING_INTERVAL=86400
MEDIA_ROOT=/opt/netbox/netbox/media
METRICS_ENABLED=false

REDIS_CACHE_DATABASE=1
REDIS_CACHE_HOST=redis-cache
REDIS_CACHE_INSECURE_SKIP_TLS_VERIFY=false
REDIS_CACHE_PASSWORD=<RANDOM_PASSWORD>
REDIS_CACHE_SSL=false

REDIS_DATABASE=0
REDIS_HOST=redis
REDIS_INSECURE_SKIP_TLS_VERIFY=false
REDIS_PASSWORD=<RANDOM_PASSWORD>
REDIS_SSL=false

RELEASE_CHECK_URL=https://api.github.com/repos/netbox-community/netbox/releases
SECRET_KEY='<GENERATED_SECRET_KEY>'
SKIP_SUPERUSER=true
WEBHOOKS_ENABLED=true
  1. The local volumes are mapped to local directories for persistent data storage.
  2. Environment variables are moved to a centralized file for easy management
  3. <GENERATED_SECRET_KEY> is generated using docker compose run netbox python3 /opt/netbox/netbox/generate_secret_key.py in netbox-docker directory
  4. Configuration · netbox-community/netbox-docker Wiki · GitHub

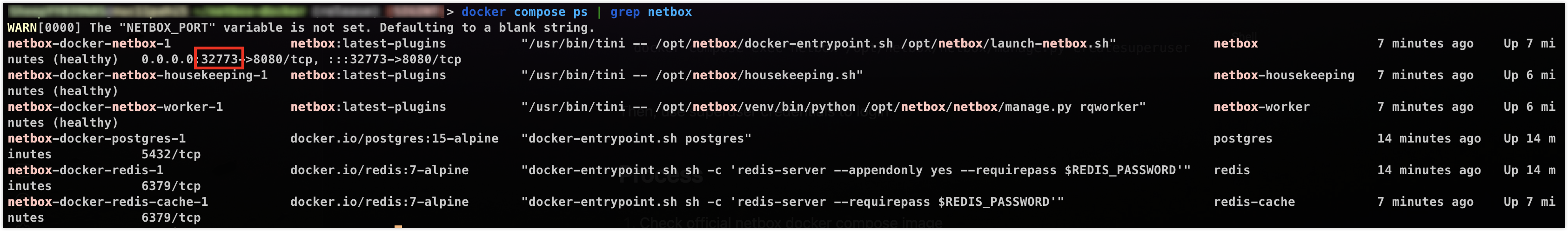

Check if the web page is up

Go to IP:32773 to check

Create Superuser​

After the container is up, need to create superuser

docker compose exec netbox /opt/netbox/netbox/manage.py createsuperuser

Then, use superuser credentials to login

Installing Plugins​

Guide: Using Netbox Plugins · netbox-community/netbox-docker Wiki · GitHub Resources:

Setup Configuration​

touch plugin_requirements.txt Dockerfile-Plugins

plugin_requirements.txt

netbox-secrets

Dockerfile-Plugins

FROM netboxcommunity/netbox:latest

COPY ./plugin_requirements.txt /opt/netbox/
RUN /opt/netbox/venv/bin/pip install  --no-warn-script-location -r /opt/netbox/plugin_requirements.txt

# These lines are only required if your plugin has its own static files.
COPY configuration/configuration.py /etc/netbox/config/configuration.py
COPY configuration/plugins.py /etc/netbox/config/plugins.py
# NOTE: This SECRET_KEY is only used during the installation. There's no need to change it.
RUN SECRET_KEY="dummydummydummydummydummydummydummydummydummydummy" /opt/netbox/venv/bin/python /opt/netbox/netbox/manage.py collectstatic --no-input

Enable plugins in the configuration​

configuration/plugins.py

PLUGINS = ["netbox_secrets"]

# PLUGINS_CONFIG = {
#   "netbox_secretstore": {
#     ADD YOUR SETTINGS HERE
#   }
# }

Build plugins after updating configuration​

docker compose build --no-cache
docker compose up -d

Process​

  1. Check official netbox docker compose image
  2. GitHub - netbox-community/netbox-docker: 🐳 Docker Image of NetBox
  3. Quite complicated, looking to see if there is an easier way
  4. GitHub - linuxserver/docker-netbox
  5. hmmm....
  6. Decided to try official way
  7. ![[Pasted image 20231206131933.png]]
  8. Wait...
  9. Access on webpage
  10. Create admin user
  11. docker compose exec netbox /opt/netbox/netbox/manage.py createsuperuser
  12. Setup
  13. HomeLab Stage LIV: Datacenter Documentation - VCDX #181 Marc Huppert

Random Information​

The thing about Device Types​

There is a library of device types on GitHub, go there and check if you can find the device model you want and import it into Netbox.

Automated Device Type Import​

GitHub - netbox-community/Device-Type-Library-Import: This library is intended to assist with importing device and module types into NetBox from the NetBox Community DeviceType-Library

I added ghcr.io/minitriga/netbox-device-type-library-import in my docker-compose.override.yml file, and it automatically imports the device types from the vendors I specified.

netbox-device-type-library-import:
 image: ghcr.io/minitriga/netbox-device-type-library-import
 environment:
  NETBOX_URL: http://netbox:8080
  NETBOX_TOKEN: <NETBOX_TOKEN>
  # VENDORS:

Possibility of Snipe-it integration​

netbox is great, but is there a better method to manage my inventory assets?

How to use netbox-ping-scan​

GitHub - henrionlo/netbox-ping-scan: Netbox plugin to scan your network and reflect it inside Netbox IPAM

Clone repo​

cd netbox-docker
git clone https://github.com/henrionlo/netbox-ping-scan

Edit the script to match environment​

Edit the netbox-ping-scan.py file

NETBOX_URL = "http://localhost:<YOUR_NETBOX_PORT>"
NETBOX_TOKEN = "<NETBOX_API_TOKEN>"

Set IP Range to be scanned​

Create two new tags in Netbox (Customization > Tags)

  1. autoscan
  2. set Allowed Object Types to IPAM > IP address
  3. toscan
  4. set Allowed Object Types to IPAM > prefix

Add and tag IPAM > Prefixes

  1. add new prefix 192.168.1.0/24 and add toscan tag

Add IP Address to be updated by the script

  1. add the IPs in IPAM > IP Addresses and add the autoscan tag

Install dependencies and run script​

python3 -m venv venv
. ./venv/bin/activate # . ./venv/bin/activate.fish
pip install pynetbox requests ipaddress urllib3
python ./netbox-ping-scan/netbox-ping-scan.py

netbox-agent​

GitHub - Solvik/netbox-agent: Netbox agent to run on your infrastructure's servers

Clone Repository​

git clone https://github.com/Solvik/netbox-agent.git
cd netbox-agent

Edit code to match latest pynetbox API​

pynetbox

  1. In ./netbox_agent/server.py change all device_role= to role=
Reason for the change

Error during script execution

DEBUG:urllib3.connectionpool:http://localhost:32773 "POST /api/dcim/devices/ HTTP/1.1" 400 36
Traceback (most recent call last):
File "/usr/local/bin/netbox_agent", line 8, in \<module>
 sys.exit(main())
   File "/usr/local/lib/python3.10/dist-packages/netbox_agent/cli.py", line 50, in main
     return run(config)
   File "/usr/local/lib/python3.10/dist-packages/netbox_agent/cli.py", line 43, in run
     server.netbox_create_or_update(config)
   File "/usr/local/lib/python3.10/dist-packages/netbox_agent/server.py", line 407, in netbox_create_or_update
     server = self._netbox_create_server(datacenter, tenant, rack)
   File "/usr/local/lib/python3.10/dist-packages/netbox_agent/server.py", line 272, in _netbox_create_server
     new_server = nb.dcim.devices.create(
   File "/usr/local/lib/python3.10/dist-packages/pynetbox/core/endpoint.py", line 309, in create
     ).post(args[0] if args else kwargs)
   File "/usr/local/lib/python3.10/dist-packages/pynetbox/core/query.py", line 387, in post
     return self._make_call(verb="post", data=data)
   File "/usr/local/lib/python3.10/dist-packages/pynetbox/core/query.py", line 282, in _make_call
     raise RequestError(req)
 pynetbox.core.query.RequestError: The request failed with code 400 Bad Request: {'role': ['This field is required.']}

Checked recent changes in pynetbox and found that all device_role= params are changed to role=

Install requirements​

python3 -m venv venv
. ./venv/bin/activate
pip3 install -r requirements.txt

Edit Config File​

sudo vim /etc/qualification

/etc/qualification:

datacenter: <DATACENTER_LOCATION>
sudo vim /etc/netbox_agent.yaml
# /etc/netbox_agent.yaml
# Netbox configuration
netbox:
  url: 'http://<NETBOX_IP>:<NETBOX_PORT>'
  token: '<NETBOX_API_TOKEN>'
 # uncomment to disable ssl verification
 # ssl_verify: false
 # uncomment to use the system's CA certificates
 # ssl_ca_certs_file: /etc/ssl/certs/ca-certificates.crt

# Network configuration
network:
  # Regex to ignore interfaces
  ignore_interfaces: "(dummy.*|docker.*)"
  # Regex to ignore IP addresses
  ignore_ips: (127\.0\.0\..*)
  # enable auto-cabling by parsing LLDP answers
  lldp: false

#
# You can use these to change the Netbox roles.
# These are the defaults.
#
device:
  #chassis_role: "Server Chassis"
  #blade_role: "Blade"
  server_role: "<SERVER_ROLE>"
# tags: server, blade, ,just a comma,delimited,list
# custom_fields: field1=value1,field2=value2#
#
# Can use this to set the tenant
#
#tenant:
# driver: "file:/tmp/tenant"
# regex: "(.*)"

## Enable virtual machine support
# virtual:
#   # not mandatory, can be guessed
#   enabled: True
#   # see https://netbox.company.com/virtualization/clusters/
#   cluster_name: my_vm_cluster

# Enable datacenter location feature in Netbox
datacenter_location:
 driver: "cmd:cat /etc/qualification | tr [A-Z] [a-z]"
 regex: "datacenter: (?P<datacenter>[A-Za-z0-9]+)"
# driver: 'cmd:lldpctl'
# regex: 'SysName: .*\.([A-Za-z0-9]+)'
#
# driver: "file:/tmp/datacenter"
# regex: "(.*)"

# Enable rack location feature in Netbox
# rack_location:
# driver: 'cmd:lldpctl'
# match SysName: sw-dist-a1.dc42
# regex: 'SysName:[ ]+[A-Za-z]+-[A-Za-z]+-([A-Za-z0-9]+)'
#
# driver: "file:/tmp/datacenter"
# regex: "(.*)"

# Enable local inventory reporting
inventory: true

Register Device​

python3 -m netbox_agent.cli --register

Update network​

python3 -m netbox_agent.cli --update-network

Update Inventory​

python3 -m netbox_agent.cli --update-inventory
